FORKLIFTS
FORKLIFT, REACH ALL TERRAIN 19'
 Image for reference only   Click on above thumbnails for alternate view | |
Instructions: <Click Here>
Model: GTH-5519
Daily: $375.00
Weekly: $1,100.00
Monthly: $2,100.00
Additional Information

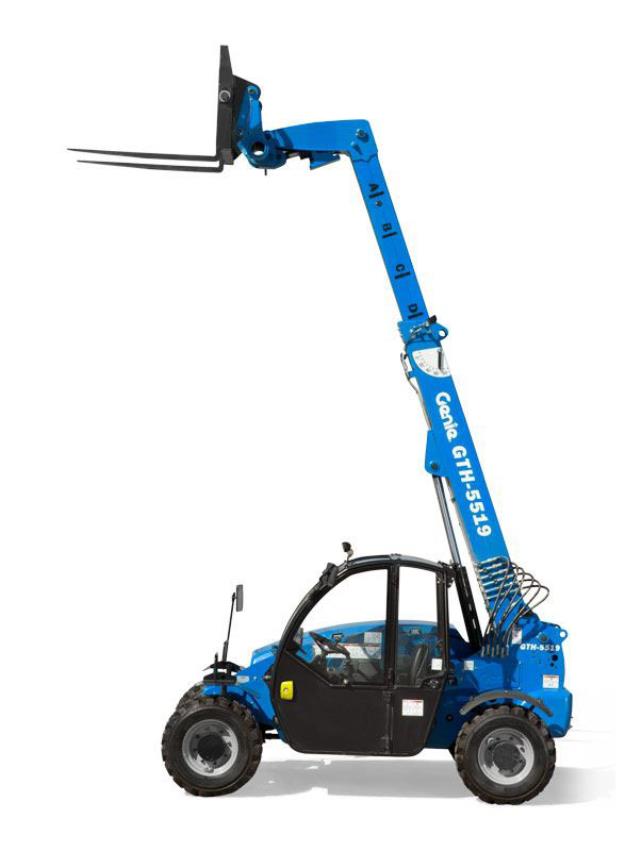

- GENIE TELEHANDLER, GTH-5519

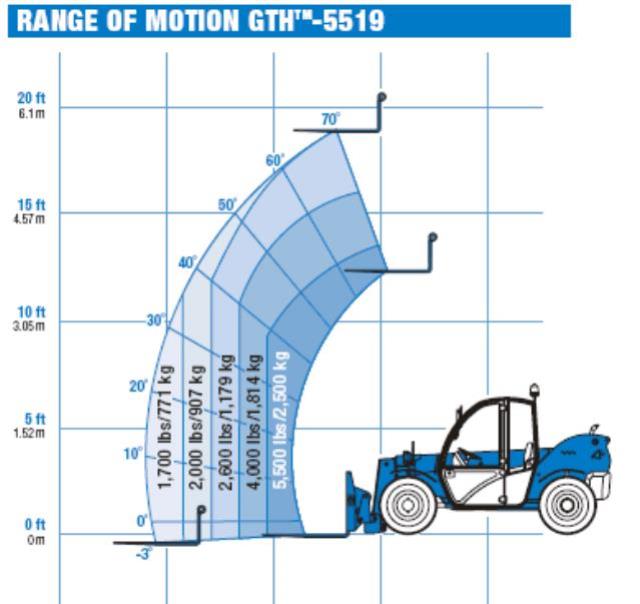

- Maximum lift height - 18 ft 10 in
- Reach - 11 ft 3 in, Reach at maximum height 1 ft 10 in
- Height, stowed - 6 ft 4 in
- Length, stowed (without forks) - 12 ft 3 in
- Width - 5 ft 11 in
- Wheelbase - 7 ft 6 in
- Ground clearance, center - 1 ft 2 in
- Ground clearance, axle - 10 in
- Fork Length - 47 in (NO EXTENSIONS)
- Fork cross section - 2 x 4 in (0.05 x 0.10 m)
- Weight - 10,400 lbs
- PRODUCTIVITY
- Maximum lift capacity 5,500 lbs
- Lift capacity at maximum height 2,600 lbs, Lift capacity at maximum reach 1,700 lbs
- Drive speed 15 mph
- Draw bar pull 10,250 lbs
- Turning radius, inside (4WS) 5 ft 6 in, Turning radius, outside (4WS) 11 ft
- Auxiliary hydraulic flow 16 gpm
- Auxiliary hydraulic pressure 3,915 psi (270 bar)
- Tires, standard size 12 X 16.5 in, 10 ply
- POWER
- Power source Deutz F4M2011 4 cylinder diesel 63 hp
- Hydraulic tank capacity 19 gal 70 liters, Hydraulic system capacity (w/tank) 28 gal
- Fuel tank capacity 16 gal
* Prices are subject to change. Tax and other fees are not shown in this price estimate. Not all equipment is available at every store - please call to check availability.
* Please call us with any questions on our forklift reach all terrain 19 foot rentals in Seattle WA, including Lake City, Greenlake, and Shoreline WA.
