TRAILER MOUNTED LIFT

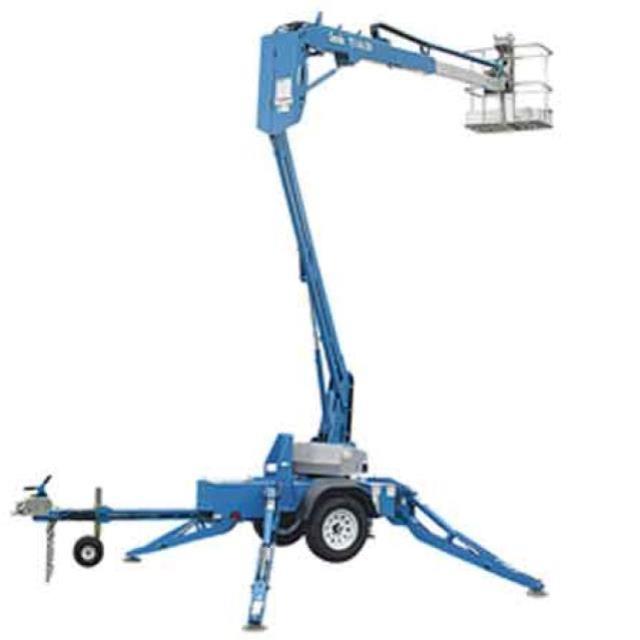

LIFT, BOOM TRAILER 34'
 Image for reference only   Click on above thumbnails for alternate view | |
Model: TZ34/20
Daily: $340.00
Weekly: $1,020.00
Monthly: $2,380.00
Additional Information
- Total Weight - 3,200 lbs. / Tongue weight - ANSI, CSA 315 lbs, / CE 163 lbs
- Working height* 40 ft, Platform height 34 ft
- Horizontal reach 18 ft 4 in / Clear out reach 13 ft 5 in
- Up and over clearance 16 ft 1 in
- Platform - Length 27 in, Width 45 in
- Stowed - Height 6 ft 4.5 in, Length - 18 ft .5 in, Width - 4 ft 9.1 in
- Ground clearance 9.5 in
- Outrigger footprint Length 10 ft 8.4 in, Width 11 ft 9.4 in
- Lift capacity (ANSI, CSA) - rotating platform 460 lbs
- Self leveling platform standard
- Platform rotation option 90° mechanical
- AC power to platform standard /
- Turntable rotation 359° non-continuous
- Outrigger leveling capability 10.5° (18% grade)
- Towing speed rate 60 mph
- Surge and parking brakes
- Controls variable speed system
- Tire size ST 205/75 R15
- Coupler 2 in (5.08 cm) hitch coupler standard
- Power source 24 V DC (four 6 V 225 Ah batteries)
