FORKLIFTS
FORKLIFT, REACH ALL TERRAIN 36'
 Image for reference only   Click on above thumbnails for alternate view | |
Model: GTH-636
Daily: $500.00
Weekly: $1,400.00
Monthly: $3,000.00
Additional Information

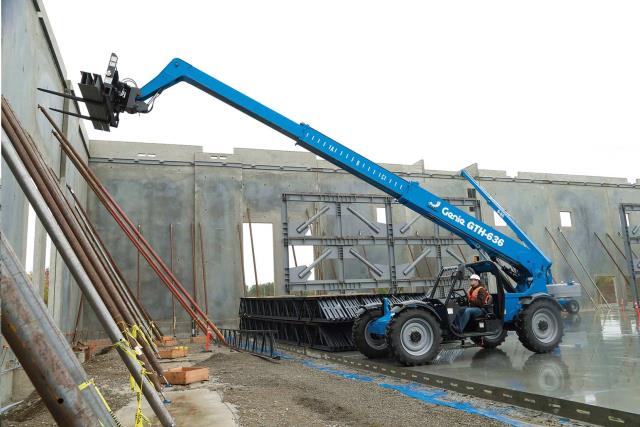

- GENIE TELEHANDLER GTH-636
- (Shoreline Only)
- Maximum lift height 36 ft
- Reach 21 ft 11 in, Reach at maximum height 21 ft 10 in
- Height, stowed 7 ft 10 in, Length, stowed (without forks) 17 ft 10 in
- Width 7 ft 11 in, Wheelbase 10 ft 11 in
- Ground clearance, center 1 ft 3 in, Ground clearance, axle 1 ft 5 in,
- Fork Length 47 in, Fork Extensions are not available for this lift,
- Fork cross section 2 x 4 in (0.05 x 0.10 m)
- Weight 17,100 lbs
- PRODUCTIVITY
- Maximum lift capacity 6,000 lbs

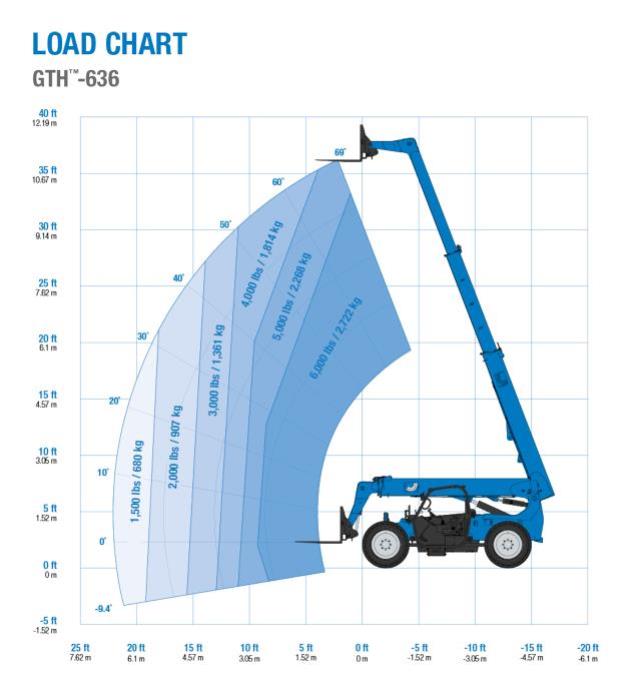

- Lift capacity at maximum height 5,000 lbs, Lift capacity at maximum reach 1,500 lbs
- Drive speed 18 mph
- Draw bar pull 15,100 lbs
- Turning radius, outside (4WS) 13 ft 4"
- Auxiliary hydraulic flow 15 gpm
- Auxiliary hydraulic pressure 3,000 psi (270 bar)
- Tires, standard size 13 X 28 in, 12 ply
- POWER
- Power source Deutz TD 2.9 L4 Turbo Charged Diesel 74 hp
- Hydraulic tank capacity 34 gal Hydraulic system capacity (w/tank) 46.5 gal
- Fuel tank capacity 27 gal
* Prices are subject to change. Tax and other fees are not shown in this price estimate. Not all equipment is available at every store - please call to check availability.
* Please call us with any questions on our forklift reach all terrain 36 foot rentals in Seattle WA, including Lake City, Greenlake, and Shoreline WA.
