BOOM LIFTS

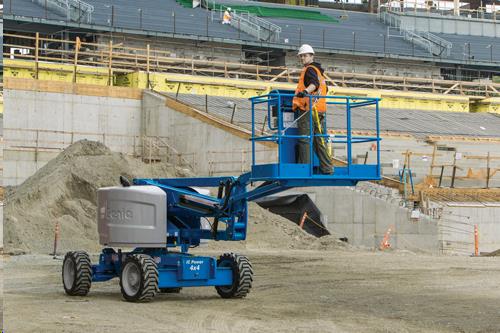

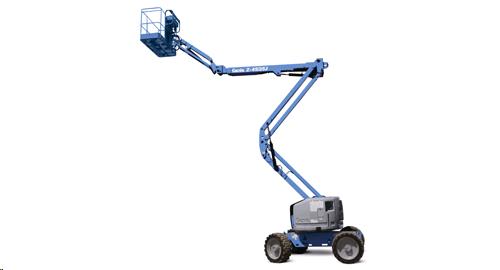

LIFT, BOOM 45' 4WD DIESEL
 Image for reference only   Click on above thumbnails for alternate view | |
Daily: $425.00
Weekly: $1,200.00
Monthly: $2,500.00
Additional Information
- GENIE Z45 /25
- Height - Working 51 ft 8 in, Platform 45 ft 8 in
- (Stowed) Height - 7 ft 6 in
- Width 7 ft 6 in
- Length - 20 ft (Stowed)
- Weight - 4x4 14,460 lbs, lift capacity 660 lb
- Gradeability - 45% Stowed (Side Slope is 25%)
- - In Lift Mode the machine is designed to work on firm, level surfaces only!
- - (Actual Specs - 4.5 degrees Front to Back / 4.5 degrees Side to Side)
- Platform - length 30 in, width 72 in
- Ground clearance - center 16 in (min 10 in)
- Drive speed - Stowed 4.5 mph, Raised 0.3 mph
- Horizontal reach max 22 ft 9 in, up and over clearance 24 ft 7 in
- Turning radius - inside 7 ft 10 in / outside 14 ft 1 in
- Turntable rotation 359 degrees
- Platform rotation 180 degrees
- Power source Diesel - Fuel tank capacity 17 gal
- ** Delivered out of our Shoreline Store only.
Consider these items to go with your rental:
* Prices are subject to change. Tax and other fees are not shown in this price estimate. Not all equipment is available at every store - please call to check availability.
* Please call us with any questions on our lift boom 45 foot 4wd diesel rentals in Seattle WA, including Lake City, Greenlake, and Shoreline WA.
