BOOM LIFTS
LIFT, BOOM 34' 4WD DIESEL
 Image for reference only   Click on above thumbnails for alternate view | |
Daily: $425.00
Weekly: $1,200.00
Monthly: $2,500.00
Additional Information
- GENIE Z34/22 4X4* or NIFTYLIFT SP34**

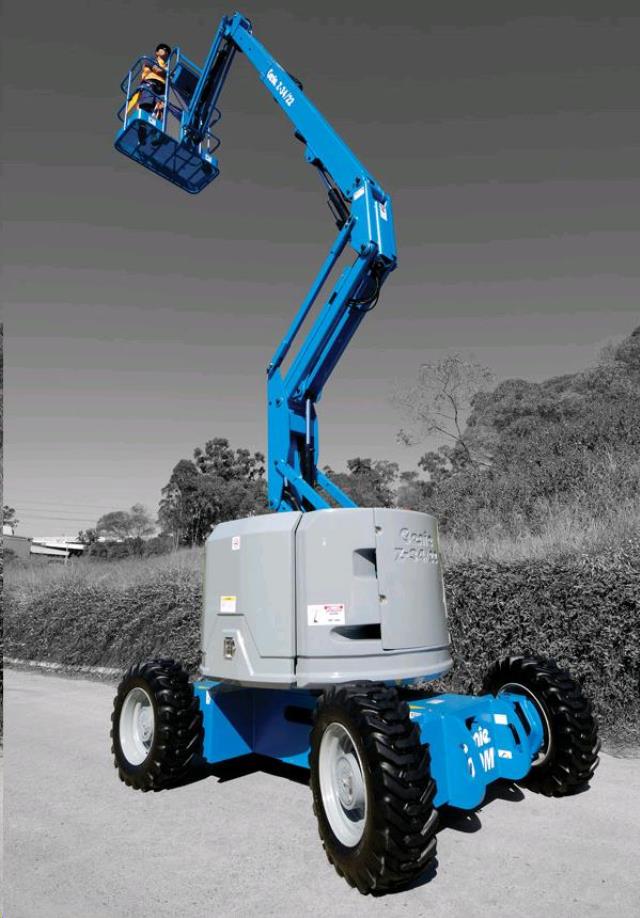

- GENIE Z34/22 4X4
- Height - Working 40 ft 10 in, Platform 34 ft 10 in
- (Stowed) Height - 6 ft 9 in
- Width 6 ft 1 in
- Length - 18 ft (Stowed) - (Length of Base Unit 8 ft 4 in)
- Weight - 4x4 11,010 lbs, lift capacity 500 lb
- Gradeability - 45% Stowed (in lift mode the machine is designed to work on firm, level surfaces only!)
- Platform - length 2 ft 6 in width 4 ft 8 in
- Ground clearance - center 6.5 in
- Drive speed - Stowed 3 mph, Raised 0.6 mph
- Horizontal reach max 22 ft 3 in, up and over clearance 15 ft 1 in
- Turning radius - inside 5 ft 11 in
- Turntable rotation 355 degrees
- Platform rotation 180 degrees
- Power source Diesel, Fuel tank capacity 9.3 gal

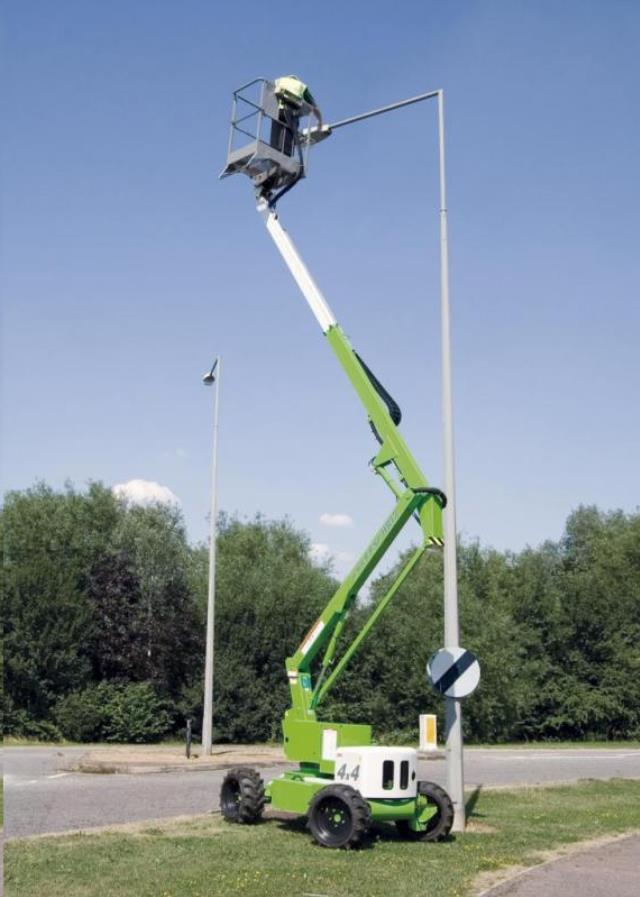

- NIFTYLIFT SP34 (Lake City)
- Height - Working 40 ft, Platform 33 ft 6 in
- Stowed Height - 6 ft 5 in, Length - 13 ft 5 in, Width 5 ft 3 in
- Platform - length 3 ft 7 in width 2 ft 2 in
- Weight - 4x4 7,650 lbs, lift capacity 500 lb
- Gradeability - 30% (17 degrees) Stowed (in lift mode the machine is designed to work on firm, level surfaces only!)
- Drive speed - Stowed 2.2 mph
- Horizontal reach max 20 ft
- Turning radius - 11 ft 2in (outside)
- Power source Diesel / Electric (battery)
- ** Delivered out of our Lake City Store
Consider these items to go with your rental:
* Prices are subject to change. Tax and other fees are not shown in this price estimate. Not all equipment is available at every store - please call to check availability.
* Please call us with any questions on our lift boom 34 foot 4wd diesel rentals in Seattle WA, including Lake City, Greenlake, and Shoreline WA.
